DungeonArchitect.Builders.Grid.GridDungeonBuilder Class Reference

A Dungeon Builder implementation that builds a grid based dungeon.
More...

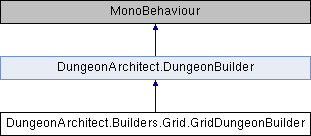

Inheritance diagram for DungeonArchitect.Builders.Grid.GridDungeonBuilder:

Public Member Functions
override void	BuildDungeon (DungeonConfig config, DungeonModel model)
	Builds the dungeon More...
void	BuildCellsWithDistribution ()
void	BuildCellsWithSeparation ()
	builds the cells in the dungeon More...
void	TriangulateRooms ()
	Triangulates the rooms identified in the previous phase This is required to connect the corridors. Delauney triangulation is used to find nice evenly spaced triangles for good connections More...
override void	OnVolumePositionModified (Volume volume, out IntVector newPositionOnGrid, out IntVector newSizeOnGrid)
	Implementations should override this so that the new logical scale and position is set based on the volume's transformation More...
void	GenerateAdjacencyLookup ()
override void	EmitMarkers ()
	Emit markers defined by this builder More...
bool	V3Equal (Vector3 a, Vector3 b)
override void	DebugDraw ()
Public Member Functions inherited from DungeonArchitect.DungeonBuilder
virtual void	OnDestroyed ()
virtual bool	IsThemingSupported ()
virtual bool	DestroyDungeonOnRebuild ()
virtual void	BuildNonThemedDungeon (DungeonSceneProvider sceneProvider, IDungeonSceneObjectInstantiator objectInstantiator)
virtual void	DebugDrawGizmos ()
void	EmitCustomMarkers ()
	Emit markers defined by the user (implementation of DungeonMarkerEmitter) More...
PropSocket	EmitMarker (string SocketType, Matrix4x4 transform, IntVector gridPosition, int cellId)
PropSocket	EmitMarker (string SocketType, Matrix4x4 transform, IntVector gridPosition, int cellId, object metadata)
void	EmitMarker (string SocketType, Matrix4x4 _transform, int count, Vector3 InterOffset, IntVector gridPosition, int cellId, Vector3 LogicalToWorldScale)
void	EmitMarker (string SocketType, Matrix4x4 _transform, int count, Vector3 InterOffset, IntVector gridPosition, int cellId, Vector3 LogicalToWorldScale, object metadata)

Static Public Member Functions
static bool	Seperate (GridDungeonModel gridModel)
	Separates the cells built in the previous phase More...

Protected Member Functions
override LevelMarkerList	CreateMarkerListObject (DungeonConfig config)
Protected Member Functions inherited from DungeonArchitect.DungeonBuilder
void	ClearSockets ()
void	ProcessMarkerOverrideVolumes ()

Additional Inherited Members
Public Attributes inherited from DungeonArchitect.DungeonBuilder
bool	asyncBuild = false
long	maxBuildTimePerFrame = 32
Transform	asyncBuildStartPosition
Protected Attributes inherited from DungeonArchitect.DungeonBuilder
DungeonConfig	config
PMRandom	nrandom
PMRandom	random
DungeonModel	model
LevelMarkerList	markers = new LevelMarkerList()
Blackboard	blackboard = new Blackboard()
Properties inherited from DungeonArchitect.DungeonBuilder
bool	IsLayoutBuilt [get]
LevelMarkerList	Markers [get]
DungeonModel	Model [get]
Blackboard	Blackboard [get]

Detailed Description

A Dungeon Builder implementation that builds a grid based dungeon.

It is based on the awesome algorithm described here by the TinyKeep game's author https://www.reddit.com/r/gamedev/comments/1dlwc4/procedural_dungeon_generation_algorithm_explained/

Definition at line 114 of file GridDungeonBuilder.cs.

Member Function Documentation

BuildCellsWithSeparation()

void DungeonArchitect.Builders.Grid.GridDungeonBuilder.BuildCellsWithSeparation

(

)

builds the cells in the dungeon

Definition at line 343 of file GridDungeonBuilder.cs.

BuildDungeon()

override void DungeonArchitect.Builders.Grid.GridDungeonBuilder.BuildDungeon ( DungeonConfig  config, DungeonModel  model  )

virtual

Builds the dungeon

Parameters

config	The dungeon configuration
model	The dungeon model

Reimplemented from DungeonArchitect.DungeonBuilder.

Definition at line 179 of file GridDungeonBuilder.cs.

EmitMarkers()

override void DungeonArchitect.Builders.Grid.GridDungeonBuilder.EmitMarkers ( )

virtual

Emit markers defined by this builder

Reimplemented from DungeonArchitect.DungeonBuilder.

Definition at line 2601 of file GridDungeonBuilder.cs.

OnVolumePositionModified()

override void DungeonArchitect.Builders.Grid.GridDungeonBuilder.OnVolumePositionModified ( Volume  volume, out IntVector  newPositionOnGrid, out IntVector  newSizeOnGrid  )

virtual

Implementations should override this so that the new logical scale and position is set based on the volume's transformation

Parameters

volume
newPositionOnGrid
newSizeOnGrid

Reimplemented from DungeonArchitect.DungeonBuilder.

Definition at line 2541 of file GridDungeonBuilder.cs.

Seperate()

static bool DungeonArchitect.Builders.Grid.GridDungeonBuilder.Seperate ( GridDungeonModel  gridModel )

static

Separates the cells built in the previous phase

Parameters

gridModel

Definition at line 824 of file GridDungeonBuilder.cs.

TriangulateRooms()

void DungeonArchitect.Builders.Grid.GridDungeonBuilder.TriangulateRooms

(

)

Triangulates the rooms identified in the previous phase This is required to connect the corridors.
Delauney triangulation is used to find nice evenly spaced triangles for good connections

Parameters

gridModel

Definition at line 899 of file GridDungeonBuilder.cs.

---

The documentation for this class was generated from the following file:

• C:/gamedev/unity/DA20.1X/Assets/CodeRespawn/DungeonArchitect/Scripts/Builders/Grid/GridDungeonBuilder.cs
