DungeonArchitect.Builders.Grid.GridDungeonModel Class Reference

Data model for the grid based dungeon builder More...

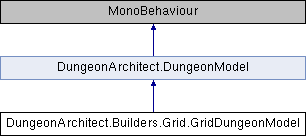

Inheritance diagram for DungeonArchitect.Builders.Grid.GridDungeonModel:

Public Member Functions
GridCellInfo	GetGridCellLookup (int x, int z)
	Get meta-data about the grid in x, z grid coordinate More...
void	BuildSpatialCellLookup ()
	Builds a lookup for fast data retrieval More...
void	BuildCellLookup ()
	Builds the cell lookup for faster cell retrieval More...
Cell	GetCell (int Id)
	Gets the cell information More...
Cell	FindCellByPosition (IntVector position)
	Finds the cell based on the position in grid coordinates More...
override void	ResetModel ()
	Clears the dungeon data model More...
bool	ContainsStairAtLocation (int x, int z)
StairInfo	GetStairAtLocation (int x, int z)
bool	ContainsStair (int cellA, int cellB)
	Check if a stair exists between the two cells More...
Public Member Functions inherited from DungeonArchitect.DungeonModel
virtual DungeonToolData	CreateToolDataInstance ()

Public Attributes
DoorManager	DoorManager = new DoorManager()
GridDungeonConfig	Config
List< Cell >	Cells = new List<Cell>()
Dictionary< int, List< StairInfo > >	CellStairs = new Dictionary<int, List<StairInfo>>()
Dictionary< int, Dictionary< int, GridCellInfo > >	GridCellInfoLookup = new Dictionary<int, Dictionary<int, GridCellInfo>>()
Dictionary< int, Cell >	CellLookup = new Dictionary<int, Cell>()
	Cell lookup based on the Cell Id More...
Public Attributes inherited from DungeonArchitect.DungeonModel
DungeonToolData	ToolData

Properties
CellDoor[]	Doors [get]
	The list of registered doors More...

Detailed Description

Data model for the grid based dungeon builder

Definition at line 393 of file GridDungeonModel.cs.

Member Function Documentation

BuildCellLookup()

void DungeonArchitect.Builders.Grid.GridDungeonModel.BuildCellLookup

(

)

Builds the cell lookup for faster cell retrieval

Definition at line 471 of file GridDungeonModel.cs.

BuildSpatialCellLookup()

void DungeonArchitect.Builders.Grid.GridDungeonModel.BuildSpatialCellLookup

(

)

Builds a lookup for fast data retrieval

Definition at line 431 of file GridDungeonModel.cs.

ContainsStair()

bool DungeonArchitect.Builders.Grid.GridDungeonModel.ContainsStair	(	int	cellA,
		int	cellB
	)

Check if a stair exists between the two cells

Parameters

cellA
cellB

Returns

Definition at line 552 of file GridDungeonModel.cs.

FindCellByPosition()

Cell DungeonArchitect.Builders.Grid.GridDungeonModel.FindCellByPosition

(

IntVector

position

)

Finds the cell based on the position in grid coordinates

Parameters

position

Position to lookup in grid cooridnates

Returns

Cell information at that location. Returns null if none found

Definition at line 500 of file GridDungeonModel.cs.

GetCell()

Cell DungeonArchitect.Builders.Grid.GridDungeonModel.GetCell

(

int

Id

)

Gets the cell information

Parameters

Id	Id of the cell to lookup

Returns

Definition at line 485 of file GridDungeonModel.cs.

GetGridCellLookup()

GridCellInfo DungeonArchitect.Builders.Grid.GridDungeonModel.GetGridCellLookup	(	int	x,
		int	z
	)

Get meta-data about the grid in x, z grid coordinate

Parameters

x	X value in grid coordinate
z	Z value in grid cooridnate

Returns

Definition at line 419 of file GridDungeonModel.cs.

ResetModel()

override void DungeonArchitect.Builders.Grid.GridDungeonModel.ResetModel ( )

virtual

Clears the dungeon data model

Reimplemented from DungeonArchitect.DungeonModel.

Definition at line 515 of file GridDungeonModel.cs.

Member Data Documentation

CellLookup

Dictionary<int, Cell> DungeonArchitect.Builders.Grid.GridDungeonModel.CellLookup = new Dictionary<int, Cell>()

Cell lookup based on the Cell Id

Definition at line 493 of file GridDungeonModel.cs.

Property Documentation

Doors

CellDoor [] DungeonArchitect.Builders.Grid.GridDungeonModel.Doors

get

The list of registered doors

Definition at line 460 of file GridDungeonModel.cs.

---

The documentation for this class was generated from the following file:

• C:/gamedev/unity/DA20.1X/Assets/CodeRespawn/DungeonArchitect/Scripts/Builders/Grid/GridDungeonModel.cs
